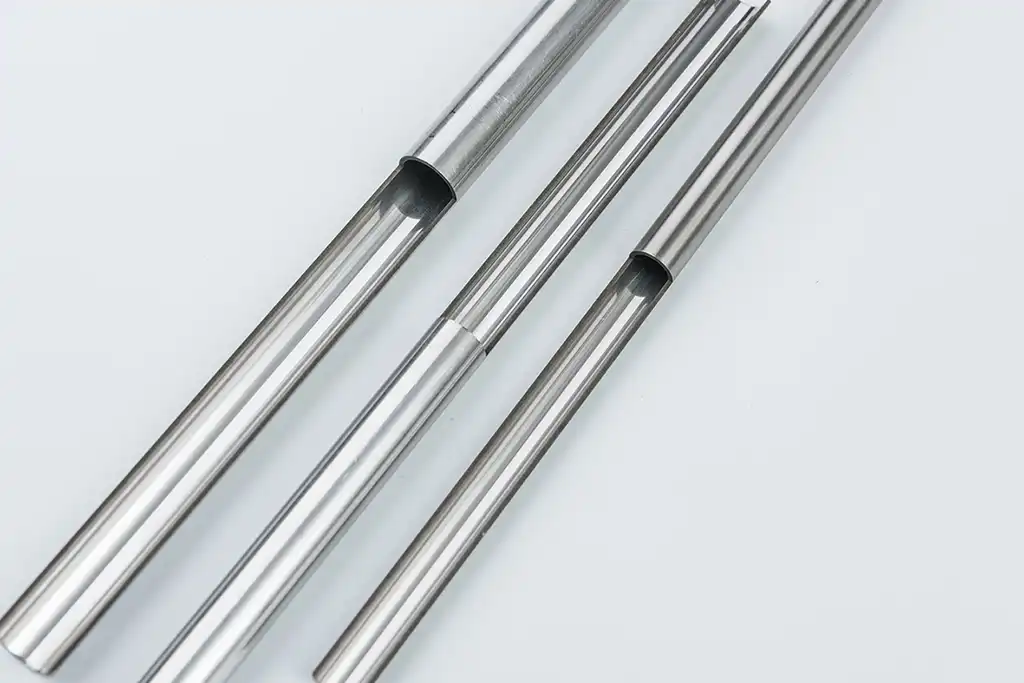

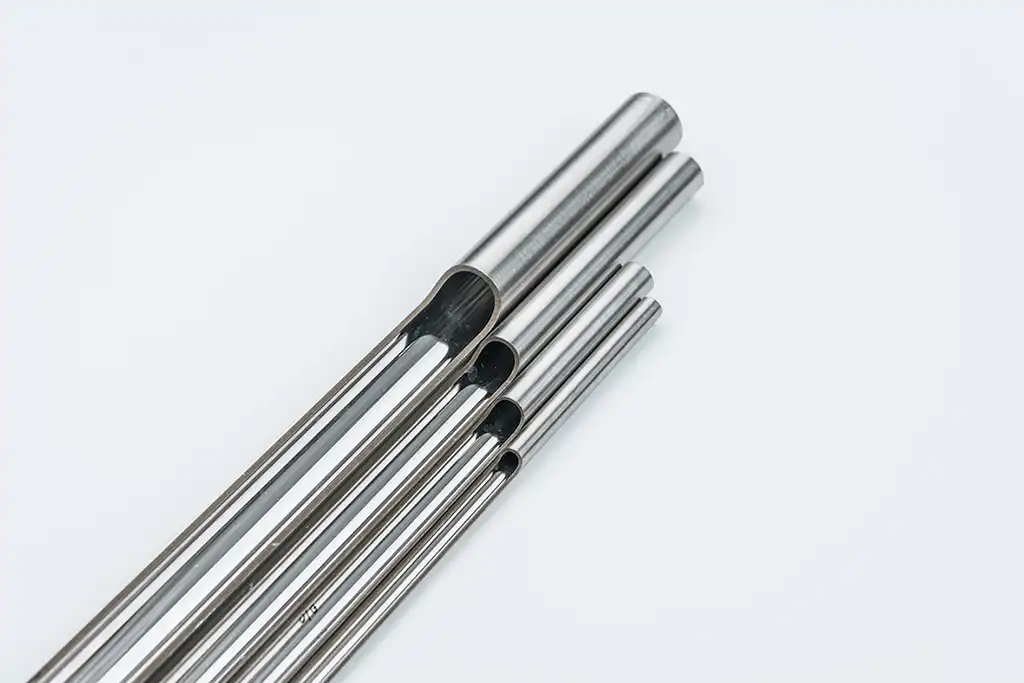

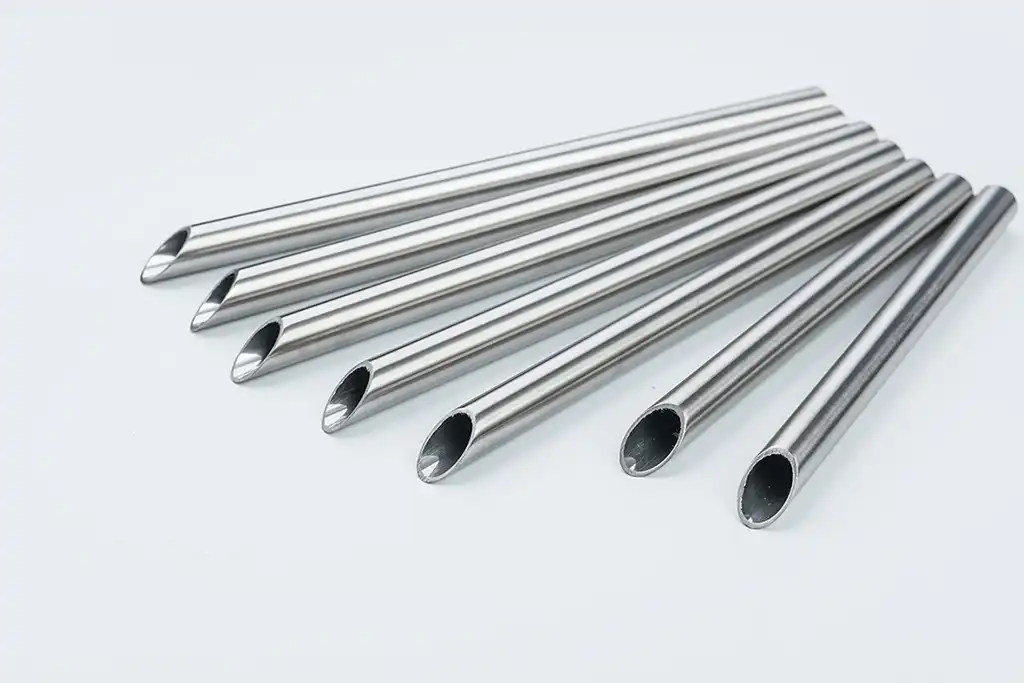

Tube And Pipe 管道
尺寸参数范围外径(OutSide):3-300mm
壁厚(Wall Thickness):0.25-10mm
表面粗糙度(surface roughness):Ra0.1-Ra3.2um
执行标准
A 213 / A 213M ：无缝铁素体和奥氏体合金钢锅炉，过热器和热交换器管
A 269 / A 269M ：一般用途的无缝和焊接奥氏体不锈钢管
A 312 / A 312M ：无缝和焊接奥氏体不锈钢管
A 376 / A 376M ：用于高温中心站服务的无缝奥氏体钢管
A 511 ：无缝不锈钢机械管
A 789 / A 789M ：用于一般服务的无缝和焊接铁素体-奥氏体不锈钢管
A 790 / A 790M ：无缝和焊接的铁素体-奥氏体不锈钢管
EN 10216-5 ：无缝钢管压力用途
EN ISO 1127 ：无缝不锈钢管（尺寸和重量）
常规生产尺寸规格范围列表
TUBE 尺寸表
AVAILABLE TUBE SIZE
| 外径 Outside Diameter | 壁厚 Wall Thickness(mm) | ||||
| 英寸 inch | 毫米 mm | ||||
| 1/4 | 6.35 | 0.89 | 1.00 | ||
| 3/8 | 9.53 | 0.89 | 1.00 | ||
| 1/2 | 12.70 | 1.00 | 1.24 | 1.65 | |
| 3/4 | 19.05 | 1.24 | 1.65 | ||
| 1 | 25.40 | 1.24 | 1.65 | ||
| 1-1/4 | 31.80 | 1.65 | |||
| 1-1/2 | 38.1 | 1.65 | |||
| 2 | 50.80 | 1.65 | |||
PIPE 尺寸表
AVAILABLE PIPE SIZE
| 外径 Outside Diameter | 管子表号 Schedule(mm) | |||
| A | 英寸 inch | 毫米 mm | 5S | 10S |
| 8A | 1/4 | 13.8 | 1.20 | 1.65 |
| 10A | 3/8 | 17.3 | 1.20 | 1.65 |
| 15A | 1/2 | 21.7 | 1.65 | 2.10 |
| 20A | 3/4 | 27.2 | 1.65 | 2.10 |
| 25A | 1 | 34.0 | 1.65 | 2.80 |
| 32A | 1-1/4 | 42.7 | 1.65 | 2.80 |
| 40A | 1-1/2 | 48.6 | 1.65 | 2.80 |
| 50A | 2 | 60.5 | 1.65 | 2.80 |
| 65A | 2-1/2 | 76.3 | 2.10 | 3.00 |
| 80A | 3 | 89.1 | 2.10 | 3.00 |
| 100A | 4 | 114.3 | 2.10 | 3.00 |
| 125A | 5 | 139.8 | 2.80 | 3.40 |
| 150A | 6 | 165.2 | 2.80 | 3.40 |
| 200A | 8 | 216.3 | 2.80 | 4.00 |
| 250A | 10 | 267.4 | 3.40 | 4.00 |
| 300A | 12 | 318.5 | 4.00 | 4.50 |
Tube和Pipe管子标准单位长度均为4米/支，6米/支可根据需要定制 Standard unit length for both Tubes&Pipes is 4 meters per piece,6 meters per piece is available upon request.
不锈钢气缸管
Pneumatic Cylinder Stainless Steel Tube
| 内径 Internal Diameter(mm) | 外径 Outside Diameter(mm) | 壁厚 Wall Thickness(mm) |
| 6 | 7 | 0.5 |
| 8 | 9 | 0.5 |
| 10 | 11 | 0.5 |
| 11.25 | 0.63 | |
| 12 | 13.4 | 0.7 |
| 15 | 16.6 | 0.8 |
| 16 | 17.4 | 0.7 |
| 18 | 1 | |
| 20 | 21.4 | 0.7 |
| 22.8 | 1.4 | |
| 25 | 26.4 | 0.7 |
| 27.8 | 1.4 | |
| 32 | 33.6 | 0.8 |
| 35 | 1.5 | |
| 40 | 41.6 | 0.8 |
| 43 | 1.5 | |
| 50 | 52 | 1 |
| 53 | 1.5 | |
| 63 | 65 | 1 |
| 66 | 1.5 |
管子标准单位长度为2米/支，其他尺寸可根据需要定制
Standard unit length for both Tubes&Pipes is 2 meters per piece,other size is available upon request.
